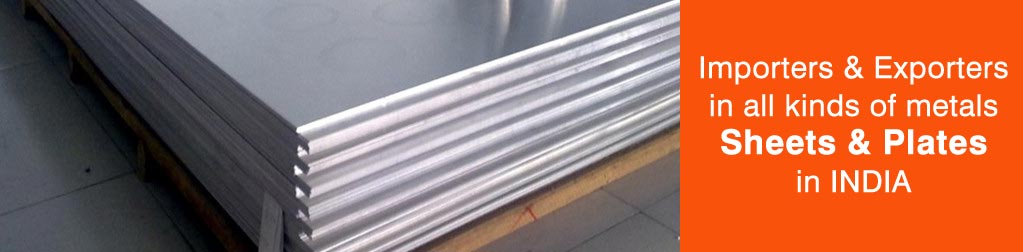

5086 Aluminium Plates
Champak Industries is a leading supplier of Alloy 5086 aluminium plates are available is a wide range from .250" - 2.00" in widths up to 120" and lengths up to 300" and certified to ASTM B928. Alloy 5086 aluminum plates have even higher strength than 5052 or 5083 and its mechanical properties vary significantly with hardening and temperature. It is not strengthened by heat treatment; instead, it becomes stronger due to strain hardening or cold working of the material. This alloy can be readily welded, retaining most of its mechanical strength. The good results with welding and good corrosion properties in seawater make Alloy 5086 extremely popular in marine applications. Alloy 5086 has been used in vehicle armor plate due to its high strength factor.
Typical Applications:
. Shipyard
. Tank cars
. Welded and superstructures
. Patrol and work boat hulls
. Armor plate
. Tank cars
. Welded and superstructures
. Patrol and work boat hulls
. Armor plate
Chemical Composition Limits (WT %)
| Silicon | 0.4 |
| Iron | 0.5 |
| Copper | 0.1 |
| Manganese | 0.20-0.70 |
| Magnesium | 3.5-4.5 |
| Chromium | 0.05-0.25 |
| Zinc | 0.25 |
| Titanium | 0.15 |
| Others, each | 0.05 |
| Others, total | 0.15 |
| Balance, Aluminum |
Typical Mechanical Properties
| Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| KSI | KSI | % | |
| O (annealed) | 44 | 14 | 16 |
| H32 | 47 | 28 | 12 |
| H112 | 35 | 14 | 14 |
| H116 | 40 | 28 | 10 |
