Rockstar 400 Plates
Champak Industries now Stock and supply Raex® 400 Plates — the high-strength, wear-resistant steel with good hardness and impact toughness. Raex helps extend the span of machinery, decrease wear in structural components and save costs. It also enables innovative design and lightweight products that improve energy efficiency.
Raex is a high-strength, wear-resistant steel with favorable hardness and impact toughness. It can help extend the lifespan of machinery, decrease wear in structural components and save costs. It also enables innovative design and lightweight products improving energy efficiency.

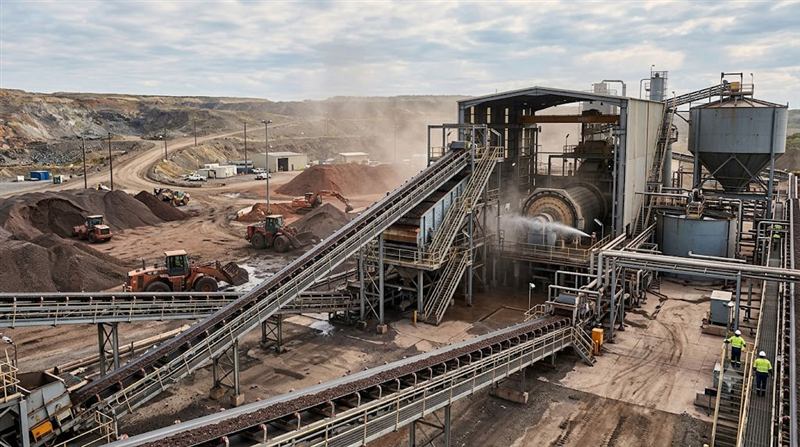

Applications include buckets and containers, cutting edges for earthmoving machines, wearing parts for mining machines, wearing parts for concrete mixing plants and wood processing machines, platform structures, and feeders and funnels.
Diamension
| USED FOR | DIMENSIONS | STANDARDS |
| Wear Resistant | T: 2 - 80 mm W: Up to 3200 mm L: Up to 12000 mm |
EN 10051 EN 10029 EN 10163-2 |
Mechanical Properties
| Product | Thickness (mm) | Width (mm) | Length (mm) | Hardness (HBW) | Typical yield strength Rp0.2 (MPa) | Typical tensile strength Rm (MPa) | Typical elongation A (%) |
| Sheet | 2.00 - 8.00 | 1000 - 1750 | 2000 - 12000 | 360 - 440 | 1100 | 1250 | 10 |
| Plate | 6.00 - 40.00 | 1800 - 3200 | 2000 - 12000 | 360 - 440 | 1100 | 1300 | 10 |
| Plate | 40.01 - 60.00 | 2000 - 2500 | 4000 - 9500 | 360 - 440 | 1100 | 1300 | 10 |
| Plate | 60.01 - 80.00 | 2000 - 2500 | 4000 - 6900 | 360 - 440 | 1100 | 1300 | 10 |
Chemical Composition (ladle analysis)
| Product | C (max %) | Si (max %) | Mn (max %) | P (max %) | S (max %) | Cr (max %) | Ni (max %) | Mo (max %) | B (max %) |
| Plate | 0.23 | 0.80 | 1.70 | 0.025 | 0.015 | 1.50 | 1.00 | 0.50 | 0.005 |
| Sheet | 0.16 | 0.50 | 1.60 | 0.025 | 0.010 | 1.20 | 1.00 | 0.25 | 0.005 |
